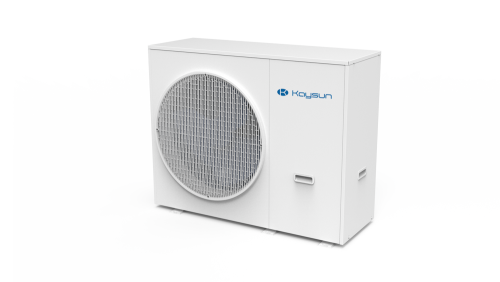

KAYSUN Aquantia KHP-MO Plus HT

M-Thermo HT is a new propane heat pump that uses the natural refrigerant R290, reducing its environmental impact compared to its predecessor. It allows supply temperatures of up to 75 °C, expanding installation and application possibilities. Its operating range in extreme temperatures is guaranteed – up to 55 °C for DHW at -25 °C and 75 °C for heating at -10 °C.

Features:

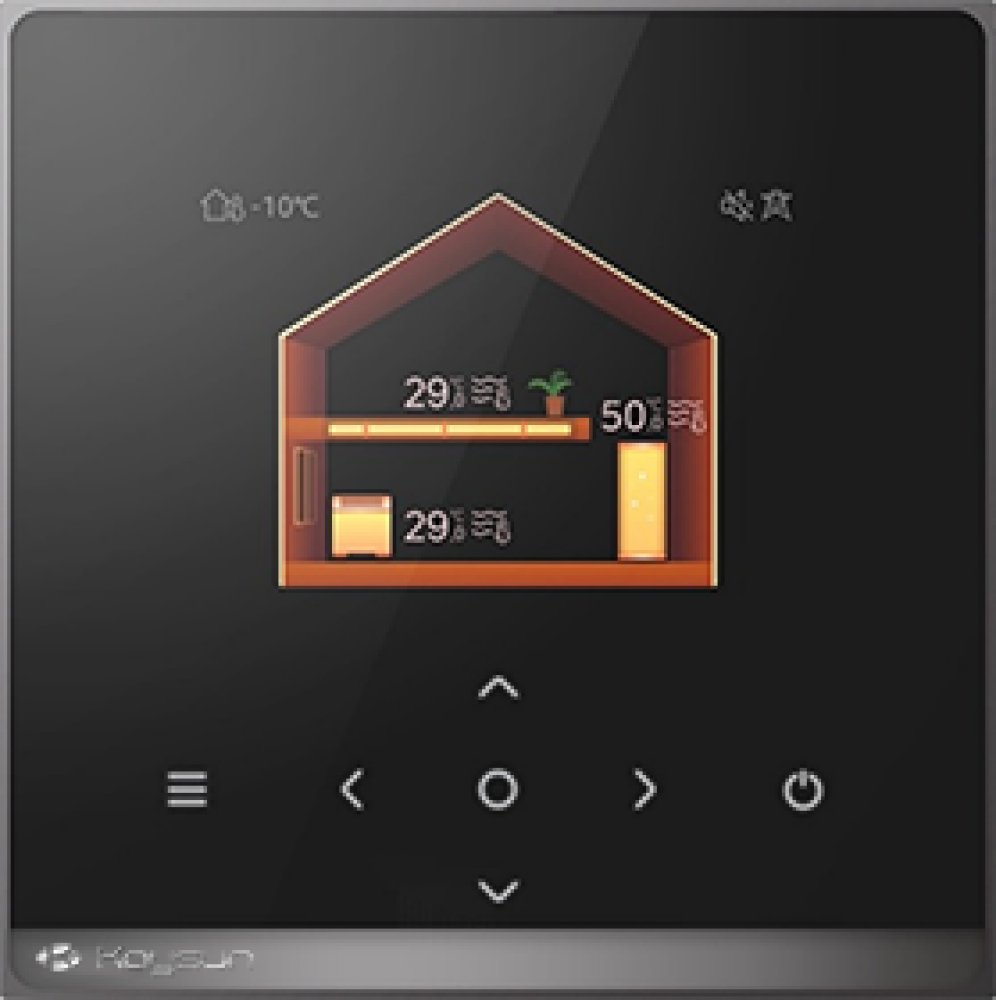

  • Integrated WiFi – control via NetHOME Plus App (compatible with voice control via Amazon Alexa and Google Home)

  • Certified with Keymark

  • Supply temperature up to 75 °C

  • Cascade connection of up to 6 units without the need for an additional module

  • Integrated management of the necessary components for two hydraulic zones, without the need for additional modules

  • Refrigerant R290 reduces environmental impact with a GWP of 3

Parameters
Type Heating Capacity (kW) Sound Pressure Level (dB(A)) Refrigerant Power Supply Water flow rated (m³/h )
KHP-MO 18 DTP 3,82 68 R-290 3f/400V 3,1
KHP-MO 22 DTP 3,82 70 R-290 3f/400V 3,78
