LG Cassette unit 570×570 and 840x840 - Compact Invertor
Commercial

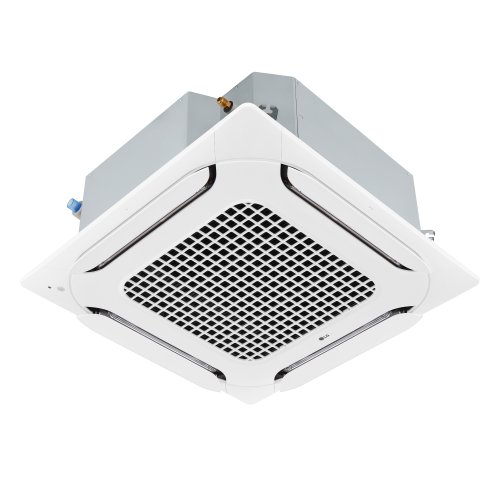

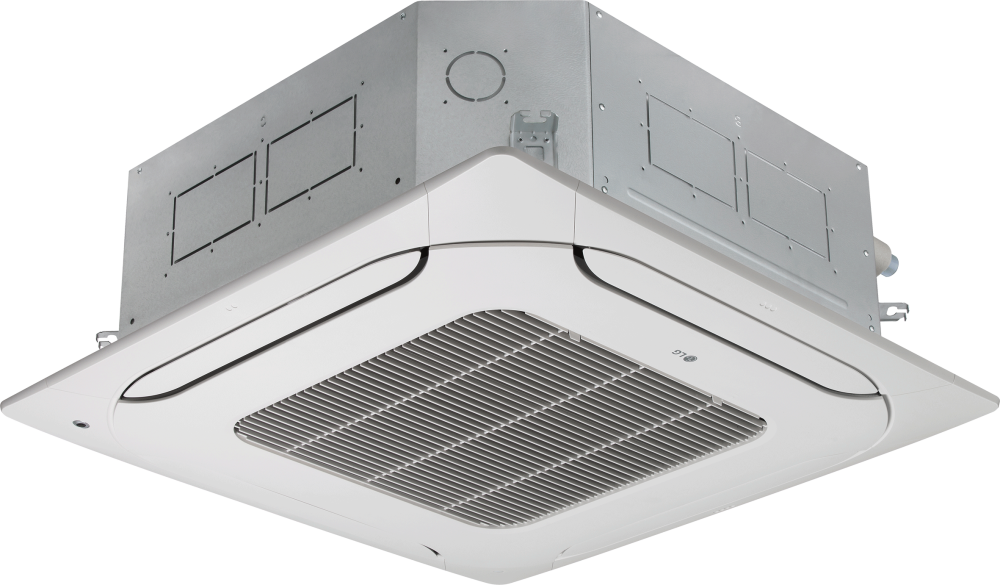

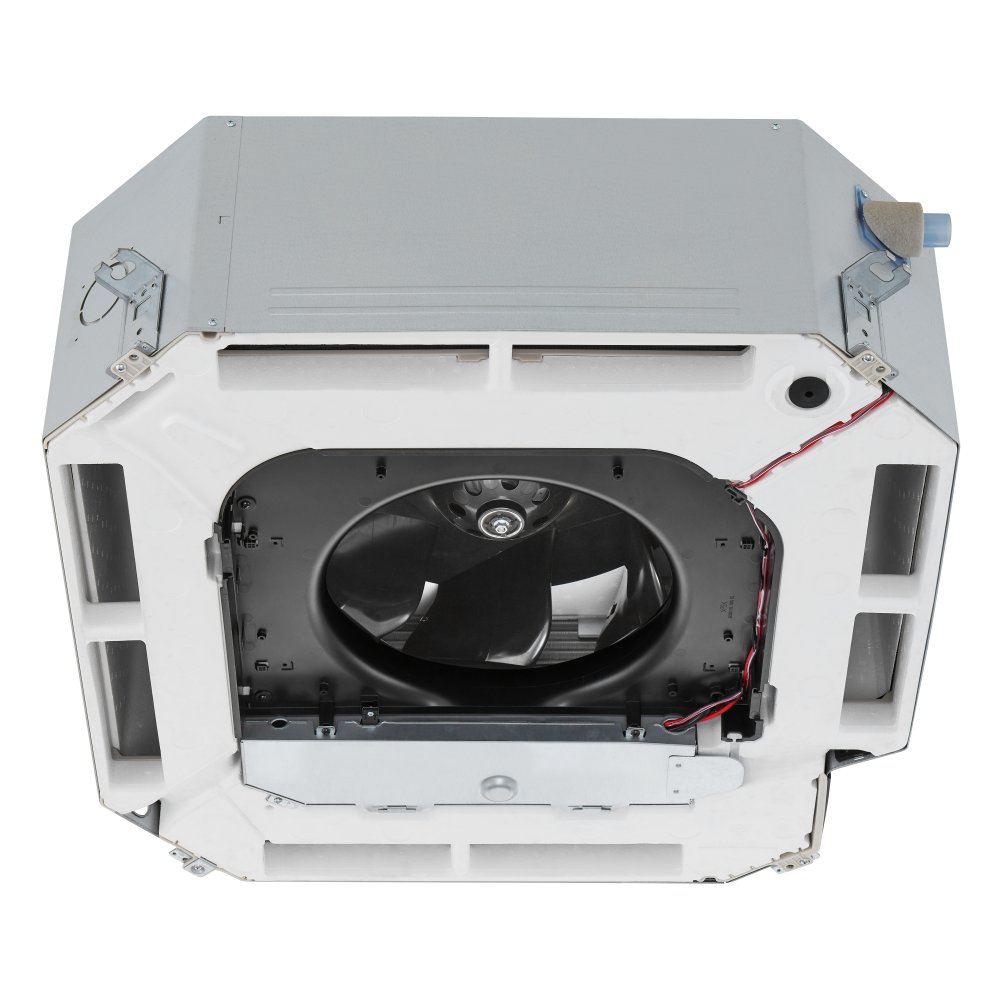

LG 570 × 570 mm and 840 × 840 mm Compact Inverter cassette units are compact 4-way ceiling air-conditioning units designed for installation into suspended ceilings. Thanks to their elegant design, they are suitable for offices, shops and homes, providing even four-way airflow for comfortable cooling and heating. They offer a more affordable solution for less demanding applications.
- Lower efficiency – energy class A to A++
- Cooling and heating operation down to −10 °C
- Not suitable for technical rooms
- Shorter pipe lengths – max. 50 m with the UUC1.U40 unit
- Power supply only 230 V for the low-capacity outdoor units

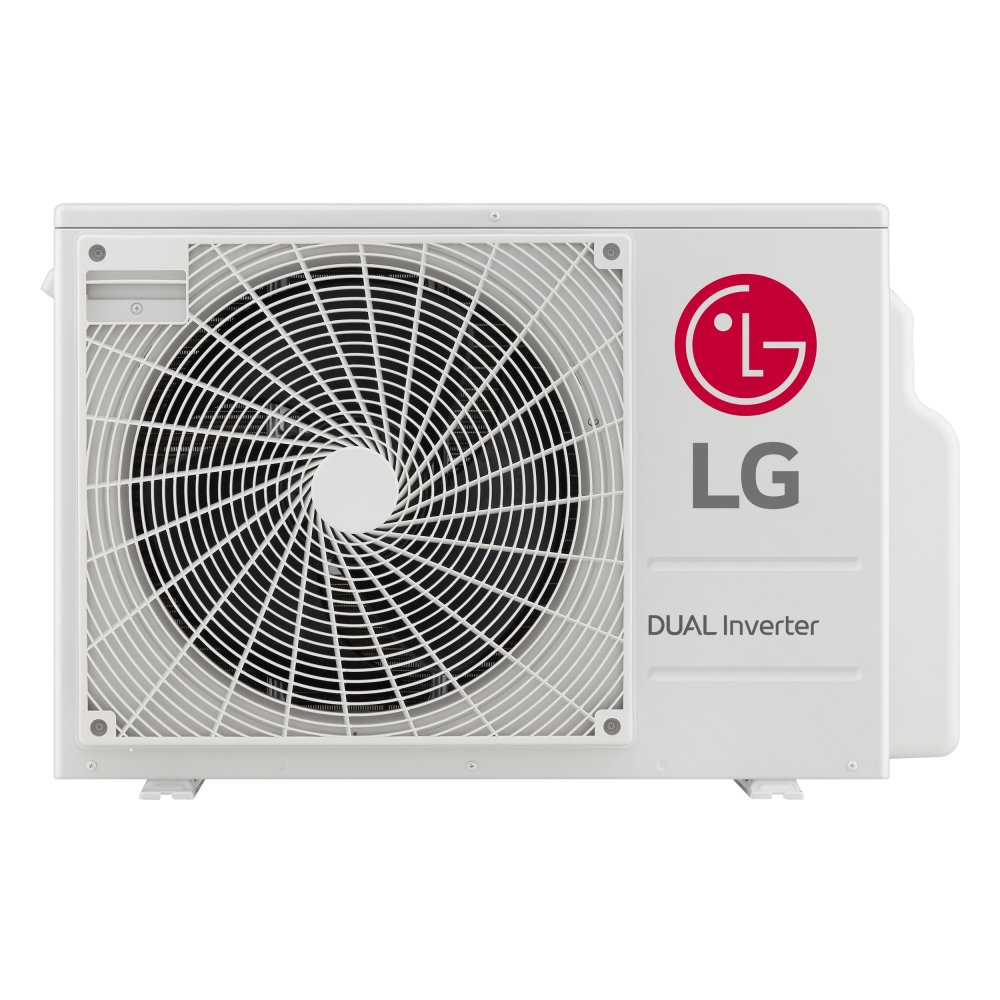

- Higher noise level of the outdoor units
Parameters
| Indoor Unit | Outdoor Unit | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| CT18F.NQ0 | UUA1.UL0 | 5 | 5,2 | A++/A | 39 | R-32 | 1f/230V | 16A | -10/48 °C | -10 / 18 °C |
| CT24F.NB0 | UUB1.U20 | 6,8 | 7,5 | A++/A+ | 36 | R-32 | 1f/230V | 20A | -10/48 °C | -10 / 18 °C |
| UT30F.NB0 | UUB1.U20 | 7,5 | 7,9 | A++/A+ | 37 | R-32 | 1f/230V | 20A | -10/48 °C | -10 / 18 °C |
| UT36F.NA0 | UUC1.U40 | 9,5 | 10,8 | A++/A+ | 42 | R-32 | 1f/230V | 20/25A | -10/48 °C | -10 / 18 °C |
