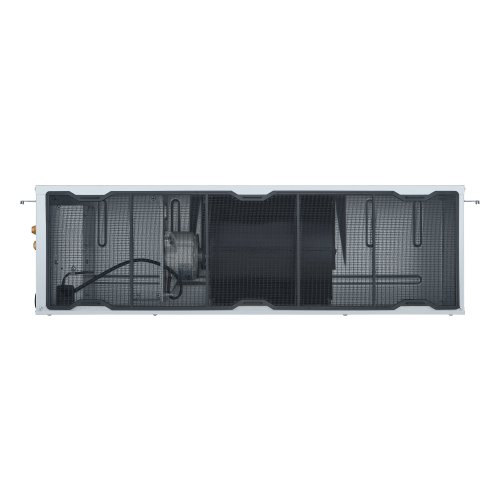

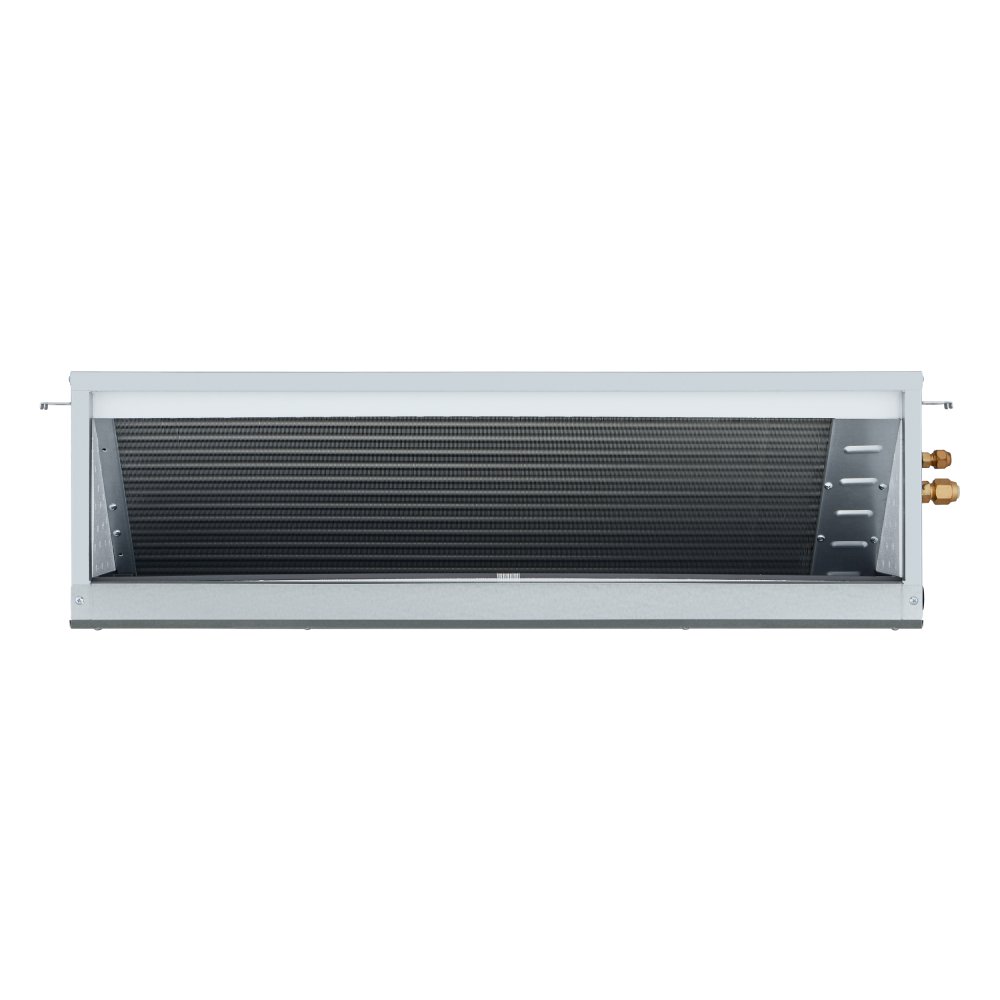

LG Low-pressure ducted unit - Compact Invertor
Commercial
The LG Compact Inverter low-pressure ducted unit is an affordable solution for less demanding applications. Thanks to its compact design and lower purchase cost, it is suitable mainly for standard residential and commercial spaces.
- Lower efficiency – energy class A to A++
- Cooling and heating operation down to −10 °C
- Not suitable for technical rooms
- Shorter pipe lengths – max. 50 m with the UUC1.U40 unit
- Power supply only 230 V for the low-capacity outdoor units
- Higher noise level of the outdoor units
- Lower purchase price than Standard Inverter
Parameters
| Indoor Unit | Outdoor Unit | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| CL18F.N60 | UUA1.UL0 | 4,7 | 5,2 | A/A | 30 | R-32 | 1f/230V | 16A | -10 / 48 °C | -10 / 18 °C |
| CL24F.N30 | UUB1.U20 | 6,8 | 7,5 | A+/A+ | 30 | R-32 | 1f/230V | 20A | -10 / 48 °C | -10 / 18 °C |
Files
Manual
Owner and Installation manual EN.pdfController
Uživateľský a inštalačný manuál CZ - ovládač.pdfProduct sheet
Product Sheet.pdfDeclaration of conformity
Declaration of Conformity - CL18F.N60.pdfDeclaration of Conformity - CL24F.N30.PDF
