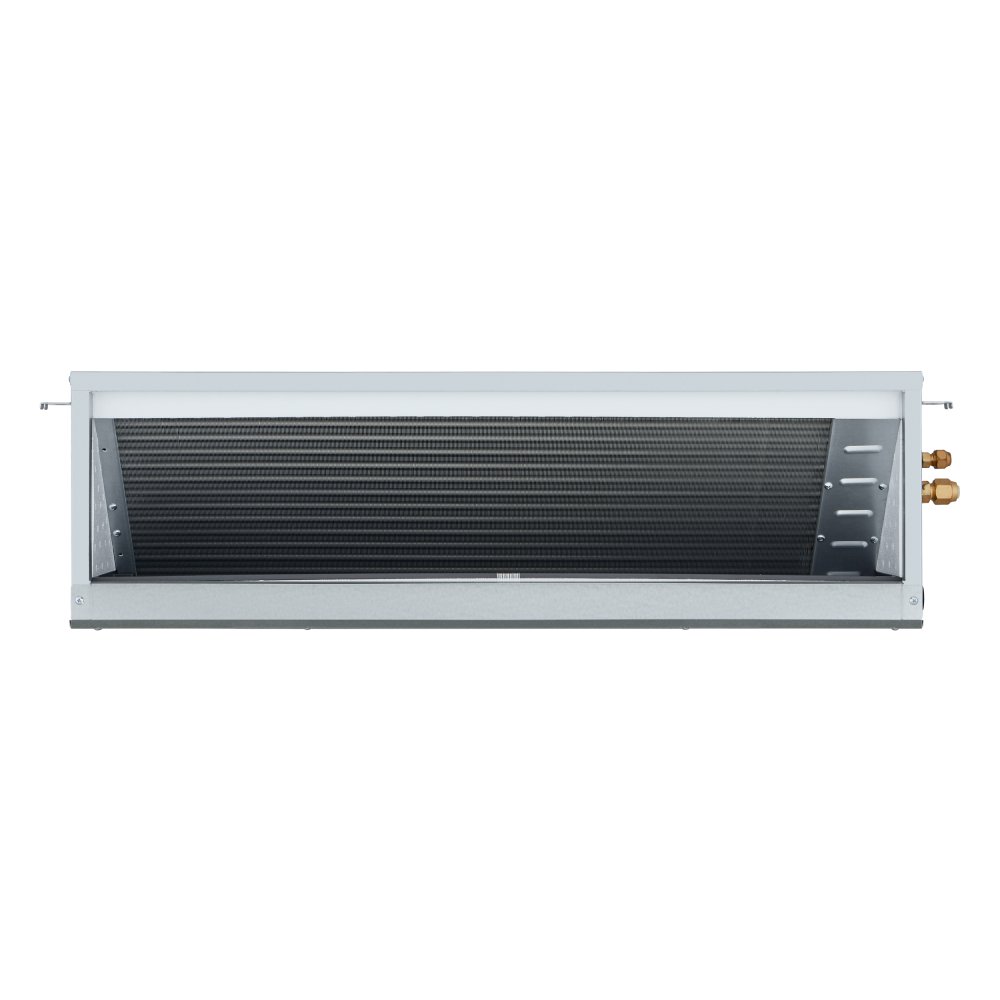

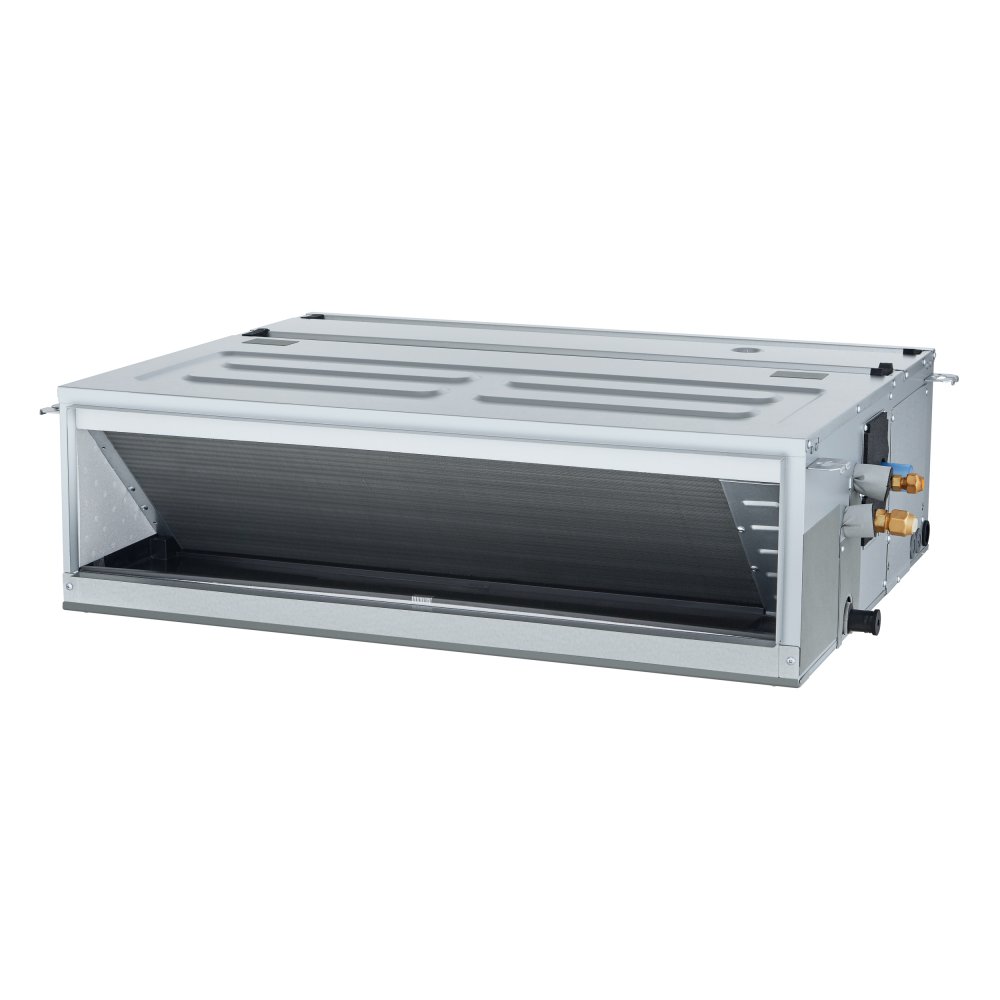

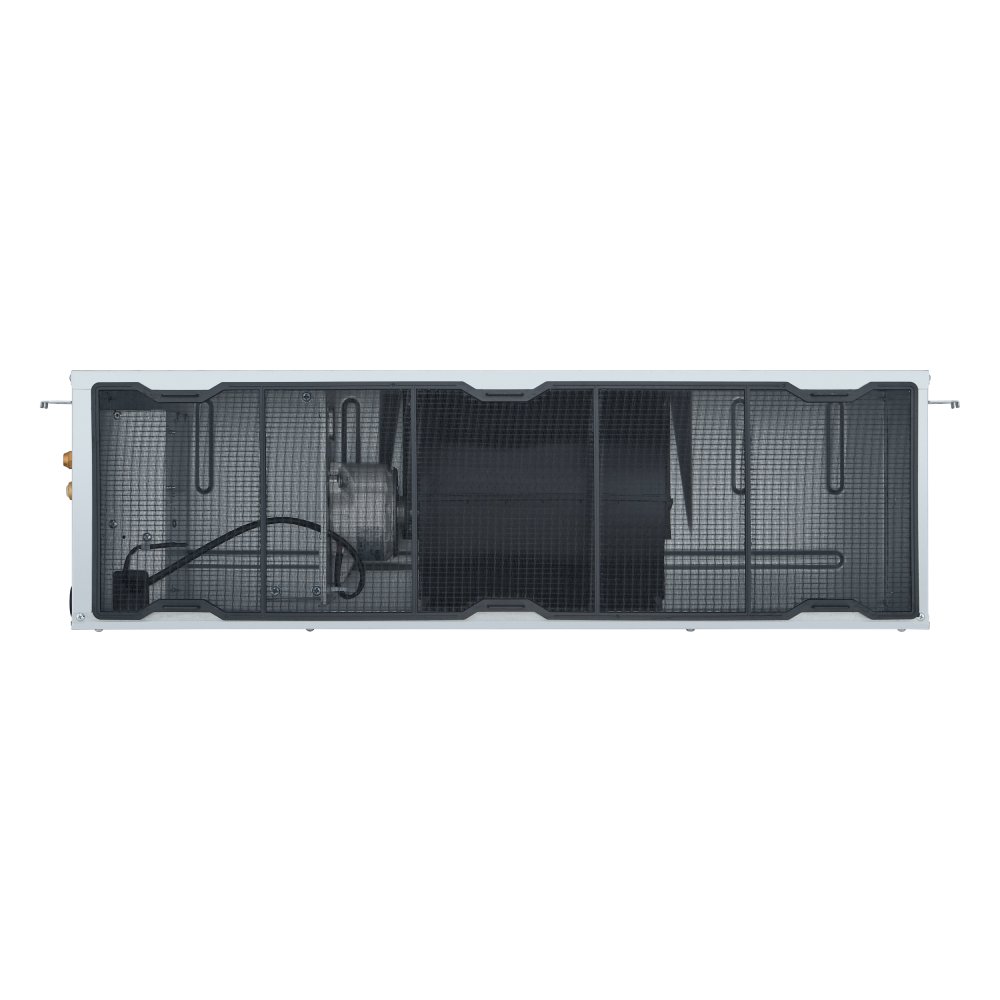

LG Medium-pressure ducted unit - Compact Invertor
Commercial
The LG Compact Inverter medium-pressure ducted unit is an affordable solution for less demanding applications, using a smaller outdoor unit than the Standard Inverter version. Thanks to its higher static pressure, it allows longer duct runs and air distribution to multiple rooms in medium-sized and larger residential and commercial spaces.
- Lower efficiency – energy class A to A++
- Cooling and heating operation down to −10 °C
- Not suitable for technical rooms

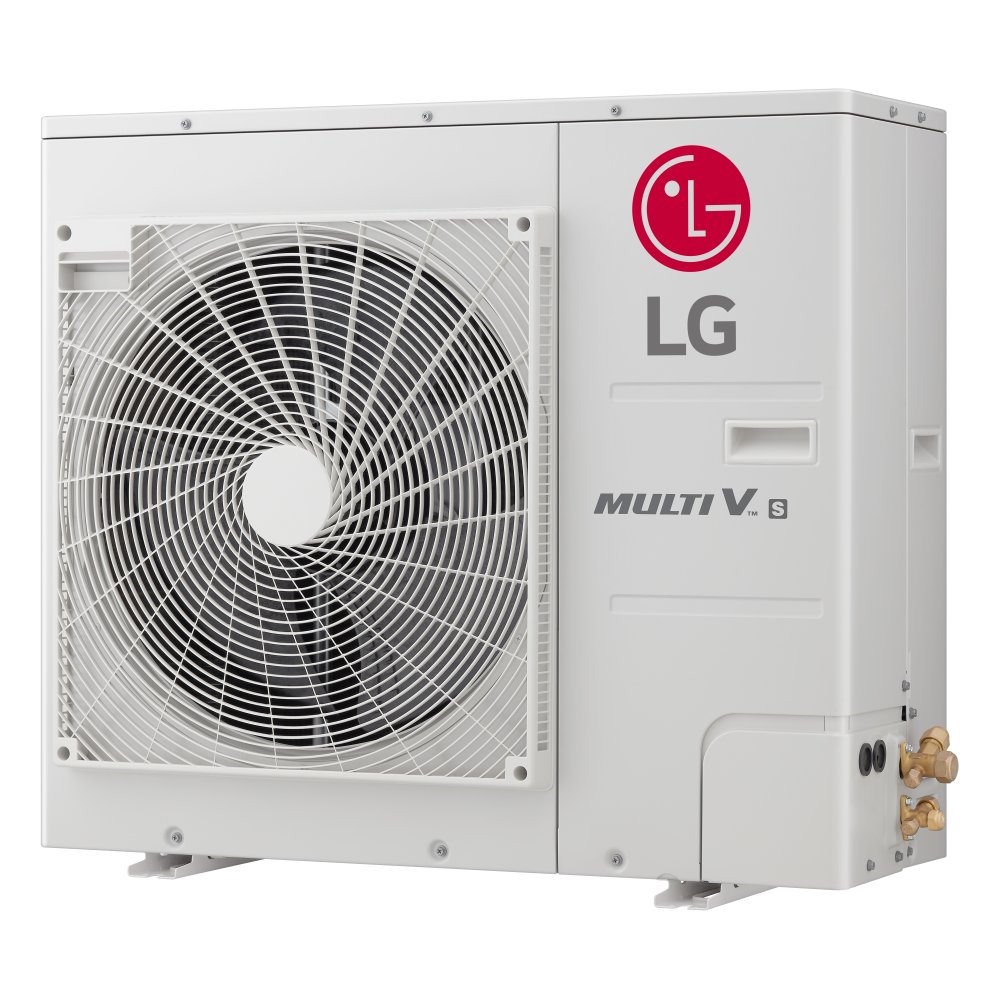

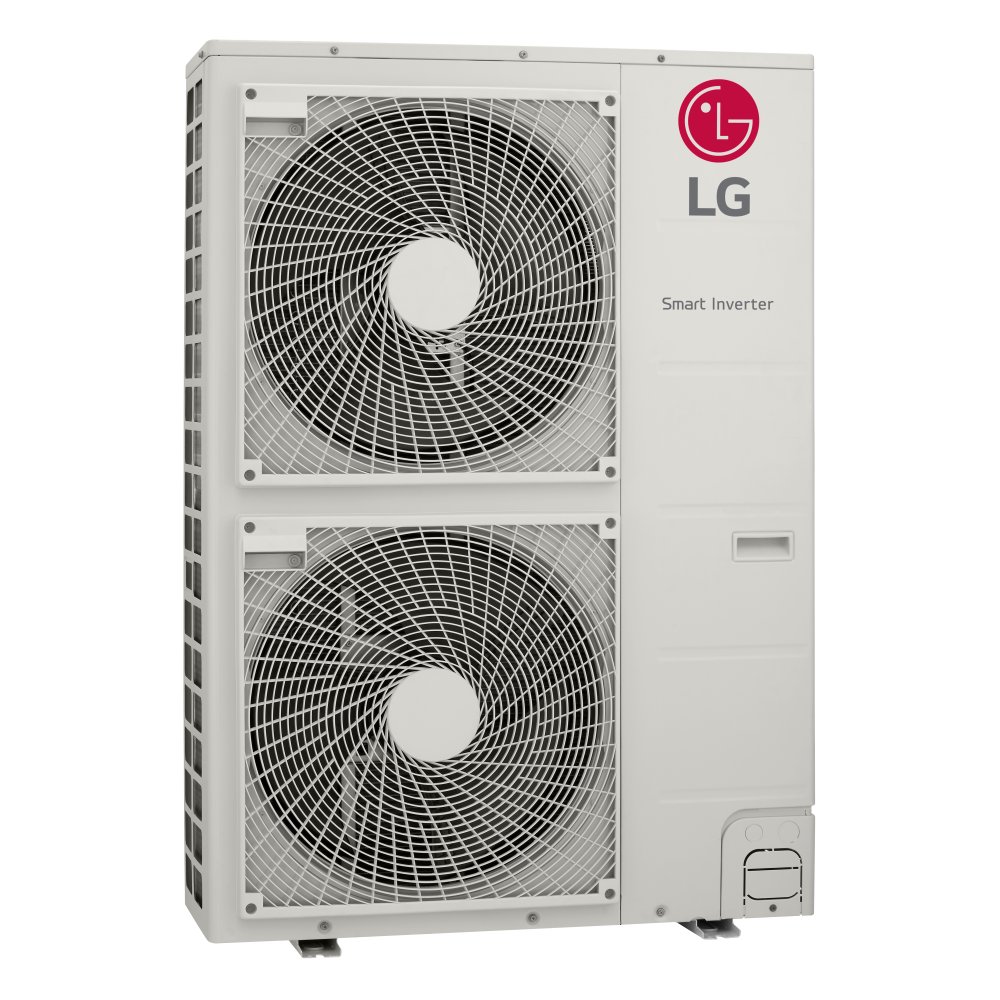

- Shorter pipe lengths – max. 50 m with the UUC1.U40 unit
- Power supply only 230 V for the low-capacity outdoor units
- Higher noise level of the outdoor units
- Lower purchase price than Standard Inverter
Parameters
| Indoor Unit | Outdoor Unit | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| CM18F.NA0 | UUA1.UL0 | 5 | 5,5 | A+/A | 29 | R-32 | 1f/230V | 16A | -10 / 48 °C | -10 / 18 °C |
| CM24F.NA0 | UUB1.U20 | 6,8 | 7,4 | A+/A+ | 32 | R-32 | 1f/230V | 20A | -10 / 48 °C | -10 / 18 °C |
| UM30F.NA0 | UUB1.U20 | 7,5 | 8 | A+/A | 33 | R-32 | 1f/230V | 20A | -10 / 48 °C | -10 / 18 °C |
| UM36F.N21 | UUC1.U40 | 9,5 | 10,8 | A+/A+ | 34 | R-32 | 1f/230V | 25A | -10 / 48 °C | -10 / 18 °C |
Files
Manual
Installation manual EN.pdfOwner manual EN.pdf

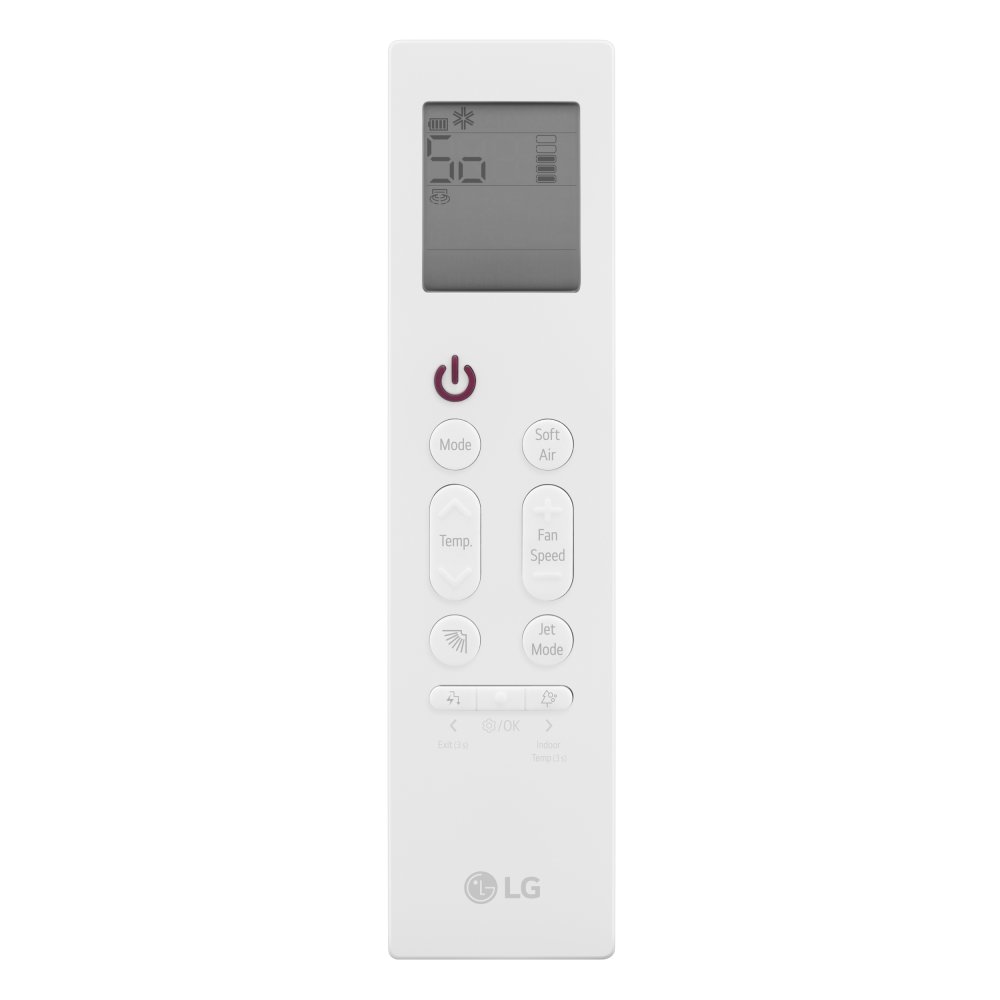

Controller
Uživateľský a inštalačný manuál CZ - ovládač.pdfProduct sheet
Product Sheet.pdfDeclaration of conformity
Declaration of Conformity - CM18F.NA0.PDFDeclaration of Conformity - CM24F.NA0.PDF
Declaration of Conformity - UM30F.NA0.PDF
Declaration of Conformity - UM36F.N21.PDF
Other
Inštalačný manuál CZ.pdfUživateľský manuál a inštalačný manuál CZ - infra ovladač.pdf
Uživateľský manuál CZ.pdf
